| 规格 Specification |
|
| 系统 System |
| 处理器 Processor | Intel® Core™ i7-6500U Processor, 2.5GHz (up to 3.1GHz) |
| 内存 Memory | 1 x DDR4 1866/2133MHz SO-DIMM, Up to 16 GB |
| 图形 Graphics | Intel® HD Graphics 520, dual display
|
| 存储 Storage | 1 x SATA 3.0 for 2.5" HDD/SSD
1 x mSATA, 1 x M.2 2242 Slot |
| 操作系统 OS | Windows 7/8/10, Linux |
| 看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval，from 1~255 sec/min |
|
|
|

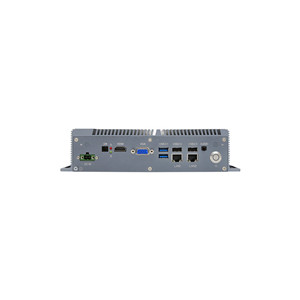

| 外部接口 External I/O |
| 网口 Ethernet | 2 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps) |
| 显示 Video | 1 x VGA: max resolution up to 1920 x 1200
1 x HDMI: max resolution up to 4096 x 2160 |
| 音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1)，Realtek® ALC269 HD Audio codec |

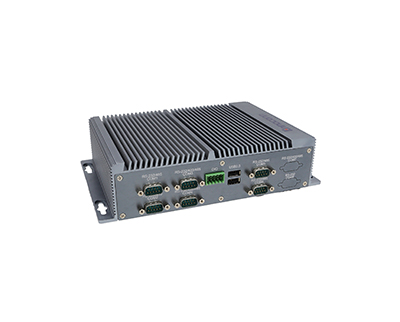

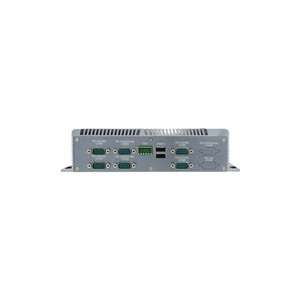

| 串口 COM | 6 x COM (2 x RS232/422/485 auto-flow，4 x RS232/485 optional by jumper) |
| USB | 4 x USB 2.0, 2 x USB 3.0 |
| GPIO | 1 x 8bit programmable GPIO |
| 按钮 Button | 1 x Power button |
| 指示灯 LED | 1 x Power LED (Green for Power-on，Blink for Sleep mode，Off for Power-off)
1 x HDD LED (Red blink for Data read or write) |
| 远程开关 Remote ON-OFF | 1 x Remote ON-OFF |
|
|
|
| 内部接口 Internal I/O |
| 扩展接口 Expansion | 1 x Full-size Mini-PCIe Slot (co-lay with mSATA)
1 x M.2 2242 Slot
1 x M.2 2230 Slot for Wifi module |
| SIM卡 | 1 x SIM Card Slot |
|
|
|
| 环境 Environmental |
| 操作温度 Operating Temp. | -20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD) |
| 存储温度 Storage Temp. | -40℃ ~ 85℃ |
| 湿度 Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing |
| 振动 Vibration | SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation |
| 机械冲击 Shock | Operation: 10G@11ms
Non-operation: 30G@11ms |
|
|
|
| 电源 Power |
| 电源输入 Power Input | 9~36V DC，2-pin phoenix connector |
|
|
|
| 机构Mechanical |
| 外观 Housing | 铝合金 Aluminum Alloy |
| 安装方式 Mounting | 桌面式 (Desk-Mount), 壁挂式 (Wall-Mount),VESA-mount (75 x 75mm,100 x 100mm),导轨式(DIN-Rail) |
| 尺寸 Dimension | 244 x 153 x 57.5 mm |
| 重量 Weight | 1.9kg |
|
|
|
| 认证Certification |
| 安规认证 Safety Certification | CCC, CE, FCC |
|
|
|
| ■ 配置Configuration |
|
|
| 型号 Model Name | 处理器 CPU |
| CES-R610-W26A | Intel® Core™ i3-6100U Processor, 2.3GHz |
| CES-R620-W26A | Intel® Core™ i5-6200U Processor, 2.3GHz (up to 2.8GHz) |
| CES-R650-W26A | Intel® Core™ i7-6500U Processor, 2.5GHz (up to 3.1GHz) |
